1.Wind speed and direction sensor technical indicators

Wind speed and direction sensor is a mechanical sensor that can continuously measure wind speed and direction，It is small in size and easy to install.

Power supply: DC12V

Working environment: -40~70℃, humidity ≤100% without condensation

Communication interface: RS485

Operating current: 55mA DC12V

Starting wind speed: 0.5m/s

Minimum data interval: 0.5S

Housing material: polymer engineering plastic

2.Wind speed and direction sensor parameters

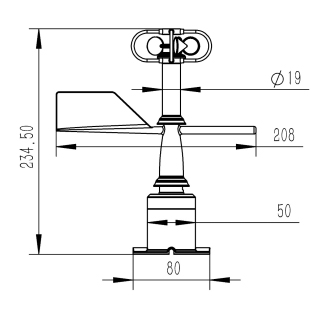

3.Wind speed and direction sensor appearance size

4.Wind speed and direction sensor installation requirements

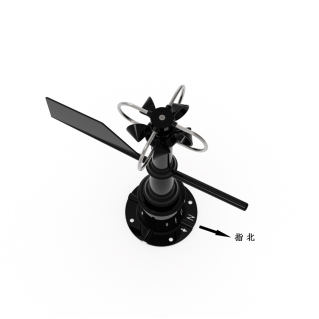

When installing, the direction of the base arrow N must be directed to the north (as shown in the figure above)
